RTG 04

A gearless elevator machine, the rtg 04 operates smoothly and silently for up to 4 passengers or a maximum load of 300 kg in multistorey buildings.

Technical Specifications

Specification	RTG 0404 A-200	RTG 0404 A-200	RTG 0404 A-200	RTG 0404 A-200
Max. Duty Load (Kg.)	300	300	300	300
Max. Passenger Capacity	4	4	4	4
Max. Speed (m/s)	0.32	0.32	0.50	0.50
Sheave Dia (mm)	200	200	200	200
Ratio of Roping	2:1	2:1	2:1	2:1
No. of Ropes	4	3	4	3
Rope Dia. (mm)	6	8	6	8
Current (A)	4.8	4.8	5.0	5.0
Power (kW)	0.63	0.63	1.00	1.00
RPM	60	60	96	96
Torque (Nm)	100	100	100	100
Frequency (Hz)	8.0	8.0	12.8	12.8
IP Protection	IP 41	IP 41	IP 41	IP 41
Start / Hr.	180	180	180	180
Machine Weight (kg) Appx	78	78	78	78

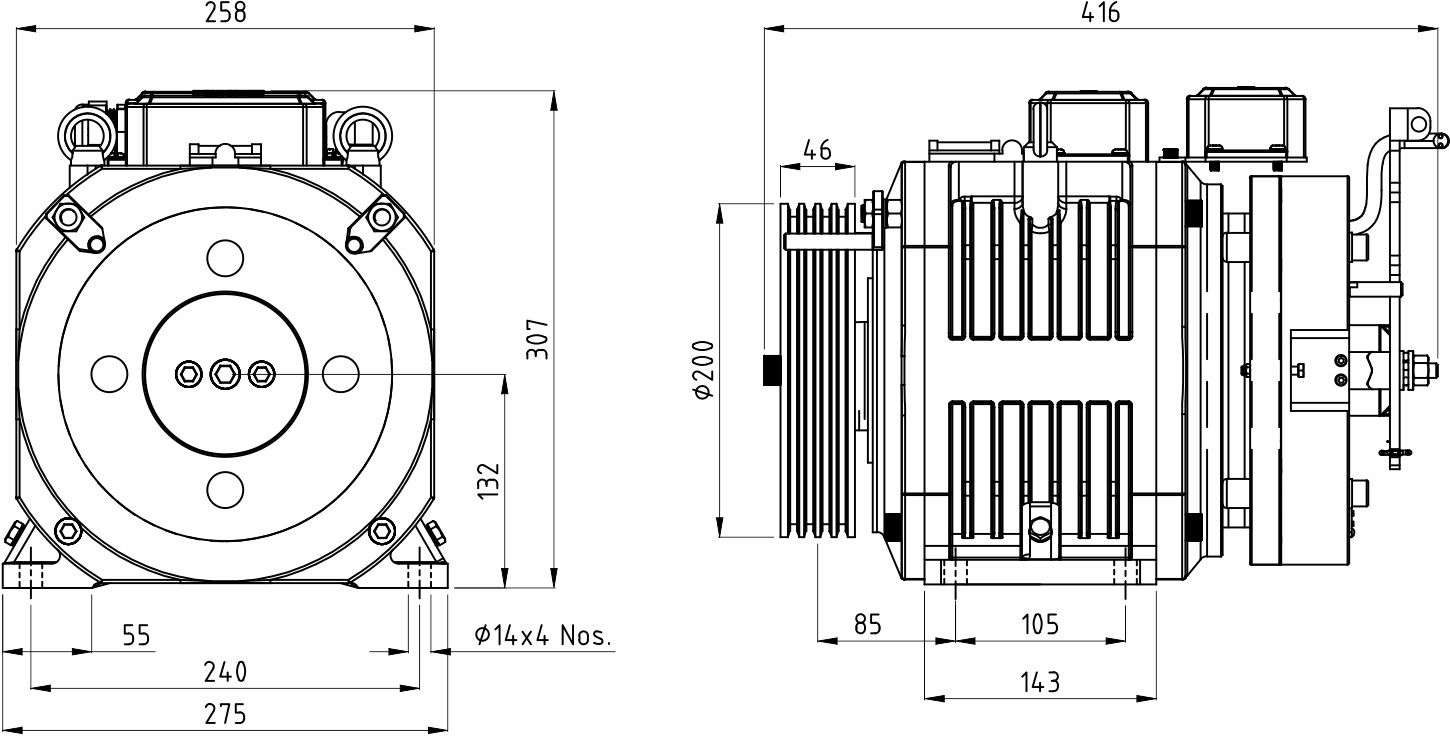

Technical Image

Products Uses

Residential Buildings: Ensures a quiet and smooth ride for residents.
Commercial Complexes: Handles high traffic with efficiency and reliability.
Hospitals: Provides dependable service for critical operations.
High-Rise Buildings: Perfect for taller structures due to superior torque capabilities.
