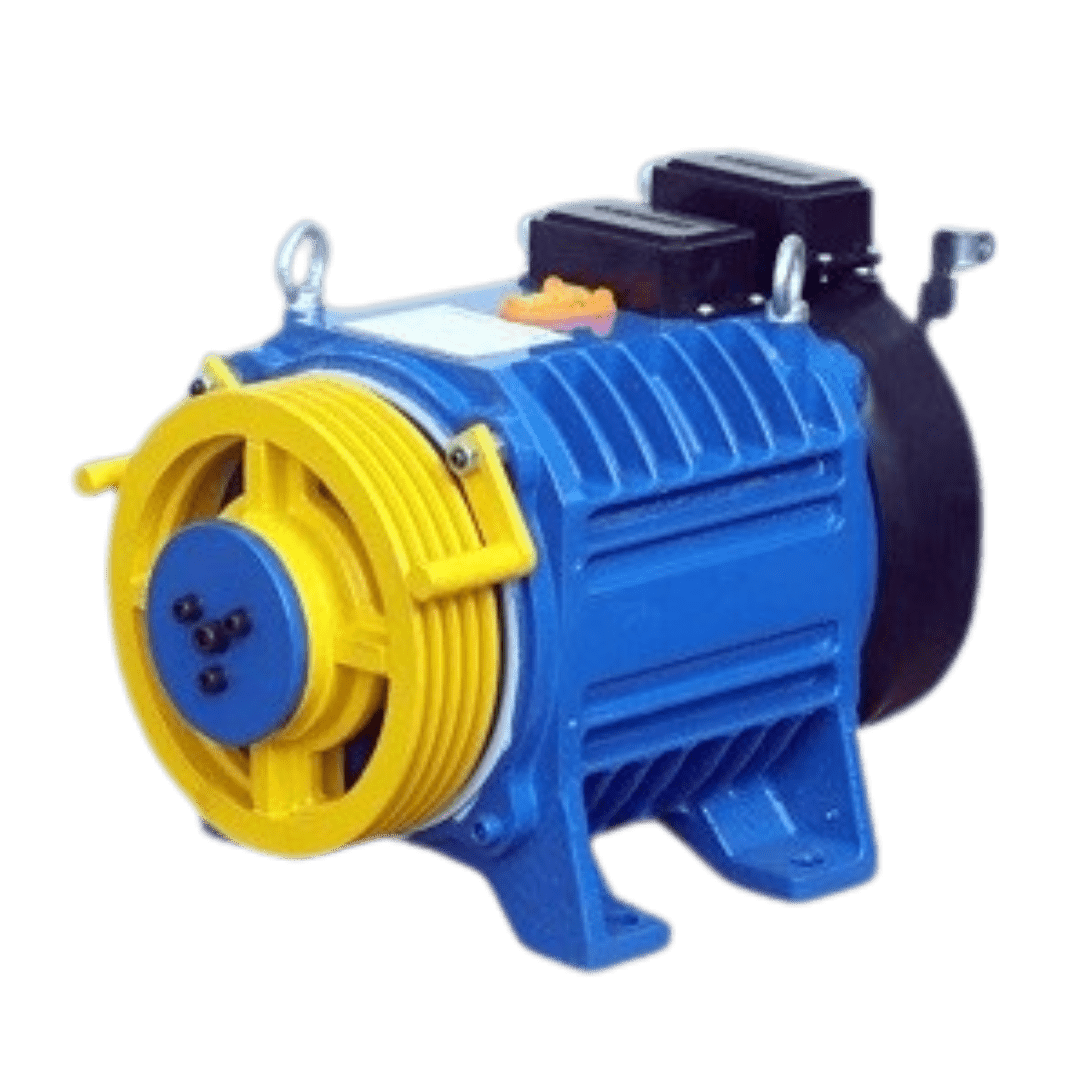

RTG 16 P 05

A gearless elevator machine, the rtg 16p operates smoothly and silently for up to 5 passengers or a maximum load of 340 kg in multistorey buildings.

  • Voltage: 400 V
  • Pole: 16
  • Duty Cycle: S3 40%
  • Brake Voltage: 110 VDC
  • Max. Static Load: 1000 Kg
Let’s Connect

Technical Specifications

Specification RTG 16 P 0505 B-240
Max. Duty Load (Kg.) 340
Max. Passenger Capacity 5
Max. Speed (m/s) 0.75
Sheave Dia (mm) 240
Ratio of Roping 2:1
No. of Ropes 4
Rope Dia. (mm) 8
Current (A) 5.5
Power (kw) 2.0
RPM 120
Torque (NM) 150
Frequency (Hz) 16.0
IP Protection IP 41
Start / Hr. 180
Machine Weight (kg) Appx 120

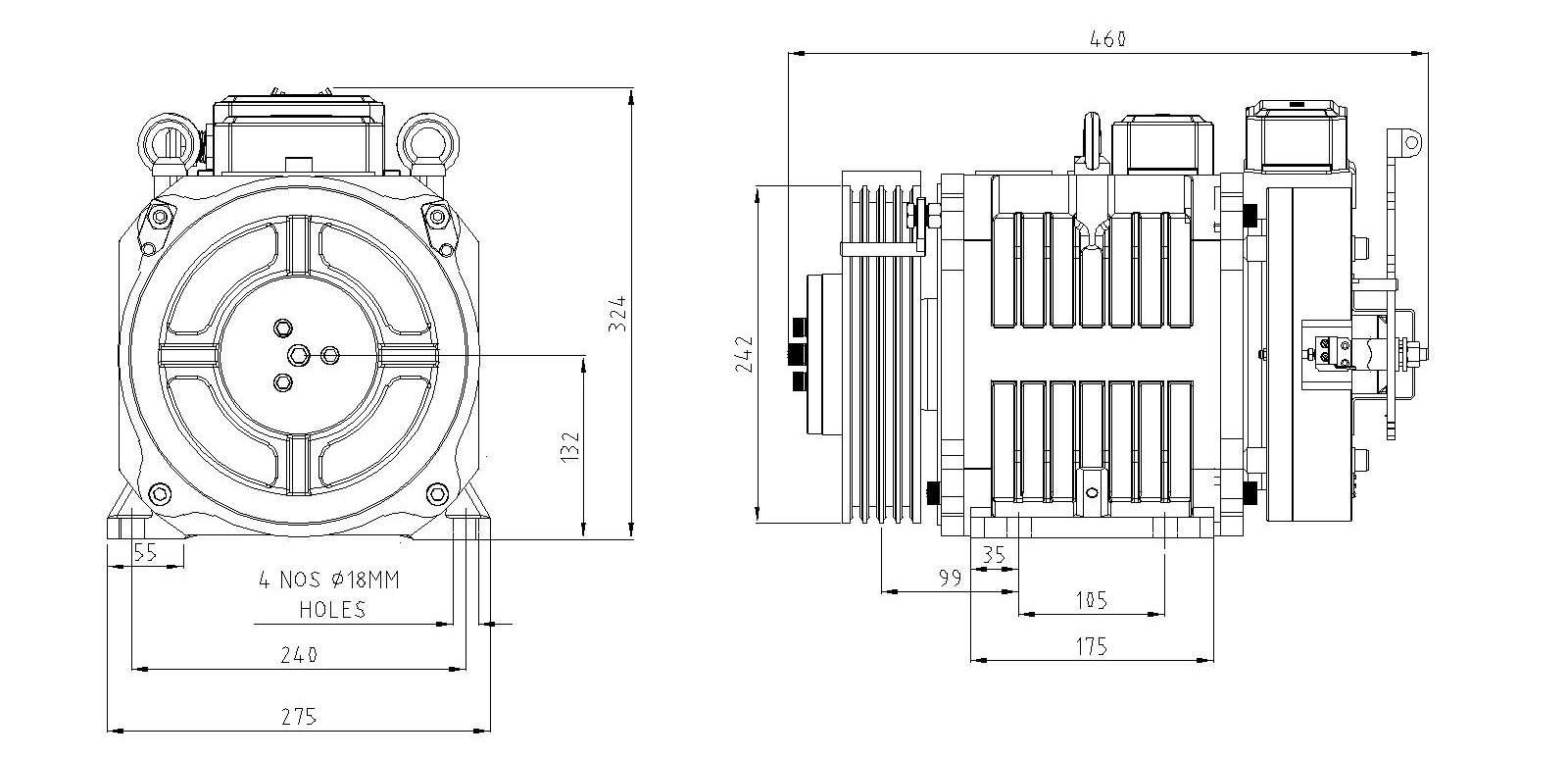

Technical Image

Products Uses

  • Residential Buildings: Ensures a quiet and smooth ride for residents.
  • Commercial Complexes: Handles high traffic with efficiency and reliability.
  • Hospitals: Provides dependable service for critical operations.
  • High-Rise Buildings: Perfect for taller structures due to superior torque capabilities.
