RTG 20

A gearless elevator machine, the rtg 20 series operates smoothly and silently for up to 20 passengers or a maximum load of 1400 kg in multistorey buildings.

Technical Specifications

Specification RTG 1620 G-320
Max. Duty Load (Kg.) 1400
Max. Passenger Capacity 20
Max. Speed (m/s) 2.00
Sheave Dia (mm) 320
Ratio of Roping 2
No. of Ropes 10
Rope Dia. (mm) 8
Current (A) 35
Power (kw) 16.8
RPM 239
Torque (NM) 670
Frequency (Hz) 35.9
IP Protection IP 41
Start / Hr. 180
Machine Weight (kg) Appx 440

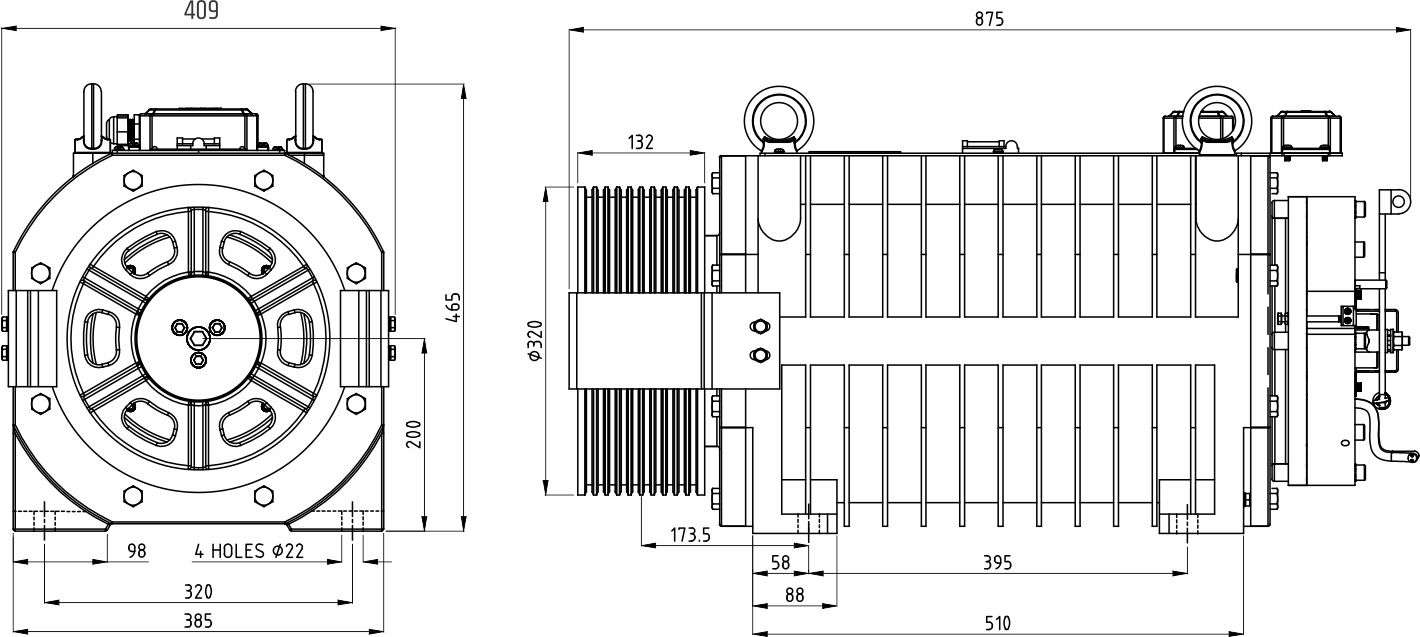

Technical Image
