RTG 24P 06 (Single-Phase)

A gearless elevator machine, the rtg 24p 06 (single-phase) operates smoothly and silently for 6 passengers or a maximum load of 408 kg in multistorey buildings.

Technical Specifications

Specification	RTG 24 P 0606 A-200
Max. Duty Load (Kg.)	408
Max. Passenger Capacity	6
Max. Speed (m/s)	0.50
Sheave Dia (mm)	200
Ratio of Roping	2:1
No. of Ropes	4
Rope Dia. (mm)	8
Current (A)	11
Power (kw)	2.20
RPM	96
Torque (NM)	220
Frequency (Hz)	19.2
IP Protection	IP 41
Start / Hr.	180
Machine Weight (kg) Appx	155

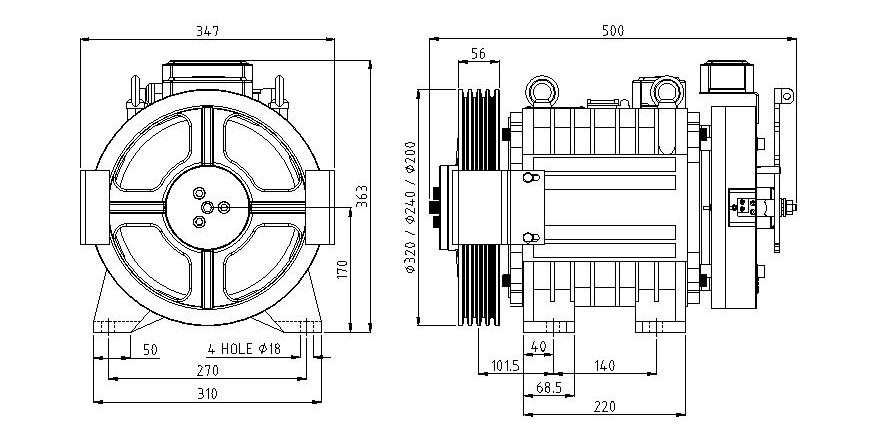

Technical Image

Products Uses

Residential Buildings: Ensures a quiet and smooth ride for residents.
Commercial Complexes: Handles high traffic with efficiency and reliability.
Hospitals: Provides dependable service for critical operations.
High-Rise Buildings: Perfect for taller structures due to superior torque capabilities.
