RTG 24P 06

A gearless elevator machine, the rtg 24p 06 operates smoothly and silently for 6 passengers or a maximum load of 408 kg in multistorey buildings.

Technical Specifications

Specification	RTG 24 P 0606 A-320	RTG 24 P 0606 B-320	RTG 24 P 0606 C-320	RTG 24 P 0606 D-320	RTG 24 P 0606 E-320	RTG 24 P 0606 A-240	RTG 24 P 0606 B-240	RTG 24 P 0606 C-240	RTG 24 P 0606 A-200	RTG 24 P 0606 B-200	RTG 24 P 0606 C-200
Max. Duty Load (Kg.)	408	408	408	408	408	408	408	408	408	408	408
Max. Passenger Capacity	6	6	6	6	6	6	6	6	6	6	6
Max. Speed (m/s)	0.50	0.75	1.00	1.25	1.50	0.50	0.75	1.00	0.50	0.75	1.00
Sheave Dia (mm)	320	320	320	320	320	240	240	240	200	200	200
Ratio of Roping	2:1	2:1	2:1	2:1	2:1	2:1	2:1	2:1	2:1	2:1	2:1
No. of Ropes	4	4	4	4	4	4	4	4	4	4	4
Rope Dia. (mm)	8	8	8	8	8	8	8	8	8	8	8
Current (A)	8.0	8.0	8.0	9.5	10.0	8.0	8.0	9.5	10.0	9.5	9.5
Power (kw)	1.8	2.8	3.7	3.4	4.1	1.8	2.8	3.7	2.2	3.3	4.4
RPM	60	90	120	149	179	80	120	160	96	144	191
Torque (NM)	220	220	220	220	220	220	220	220	220	220	220
Frequency (Hz)	19.2	28.8	38.2	30.0	35.8	16.0	24.0	32.0	19.2	28.8	38.2
IP Protection	IP 41	IP 41	IP 41	IP 41	IP 41	IP 41	IP 41	IP 41	IP 41	IP 41	IP 41
Start / Hr.	180	180	180	180	180	180	180	180	180	180	180
Machine Weight (kg) Appx	155	155	155	155	155	155	155	155	155	155	155

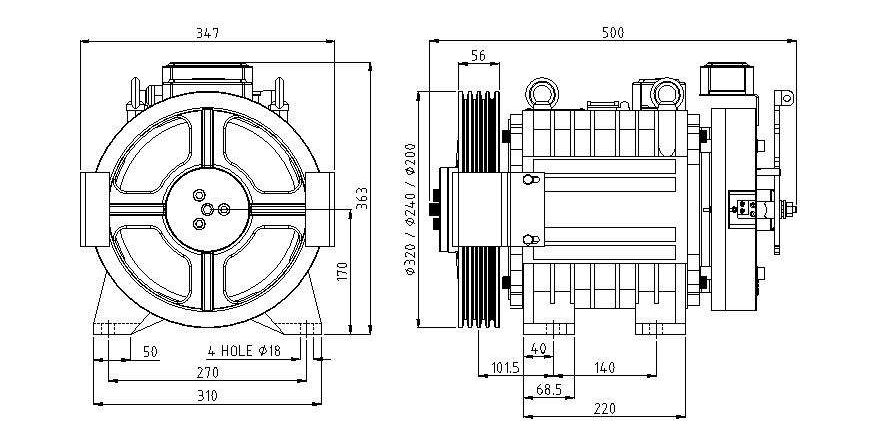

Technical Image

Products Uses

Residential Buildings: Ensures a quiet and smooth ride for residents.
Commercial Complexes: Handles high traffic with efficiency and reliability.
Hospitals: Provides dependable service for critical operations.
High-Rise Buildings: Perfect for taller structures due to superior torque capabilities.
