RTG 24P 08

A gearless elevator machine, the rtg 24p 08 operates smoothly and silently for 8 passengers or a maximum load of 544 kg in multistorey buildings.

Technical Specifications

Specification	RTG 24 P 0606 A-320	RTG 24 P 0606 B-320	RTG 24 P 0606 C-320	RTG 24 P 0606 D-320	RTG 24 P 0606 E-320	RTG 24 P 0808 F-320	RTG 24 P 0606 A-240	RTG 24 P 0606 B-240	RTG 24 P 0606 C-240	RTG 24 P 0606 D-240	RTG 24 P 0606 A-200	RTG 24 P 0606 B-200	RTG 24 P 0606 C-200
Max. Duty Load (Kg.)	544	544	544	544	544	544	544	544	544	544	544	544	544
Max. Passenger Capacity	8	8	8	8	8	8	8	8	8	8	8	8	8
Max. Speed (m/s)	0.50	0.75	1.00	1.25	1.50	1.75	0.50	0.75	1.00	1.25	0.50	0.75	1.00
Sheave Dia (mm)	320	320	320	320	320	320	240	240	240	240	200	200	200
Ratio of Roping	2	2	2	2	2	2	2	2	2	2	2:1	2:1	2:1
No. of Ropes	4	4	4	4	4	4	4	4	4	4	4	4	4
Rope Dia. (mm)	8	8	8	8	8	8	8	8	8	8	8	8	8
Current (A)	10.5	10.5	11.0	12.5	13.0	13.5	10.5	11.0	13.0	13.5	10.5	12.0	13.5
Power (kw)	2.6	2.4	4.0	4.9	5.7	6.5	3.1	4.1	5.2	6.2	3.5	4.8	6.0
RPM	60	90	120	149	179	209	80	120	160	199	96	144	191
Torque (NM)	250	250	250	250	250	250	250	250	250	250	250	250	250
Frequency (Hz)	12.0	18.0	24.0	29.8	35.8	41.8	16.0	24.0	32.0	39.8	19.2	28.8	38.2
IP Protection	IP 41	IP 41	IP 41	IP 41	IP 41	IP 41	IP 41	IP 41	IP 41	IP 41	IP 41	IP 41	IP 41
Start / Hr.	180	180	180	180	180	180	180	180	180	180	180	180	180
Machine Weight (kg) Appx	165	165	165	165	165	165	165	165	165	165	165	165	165

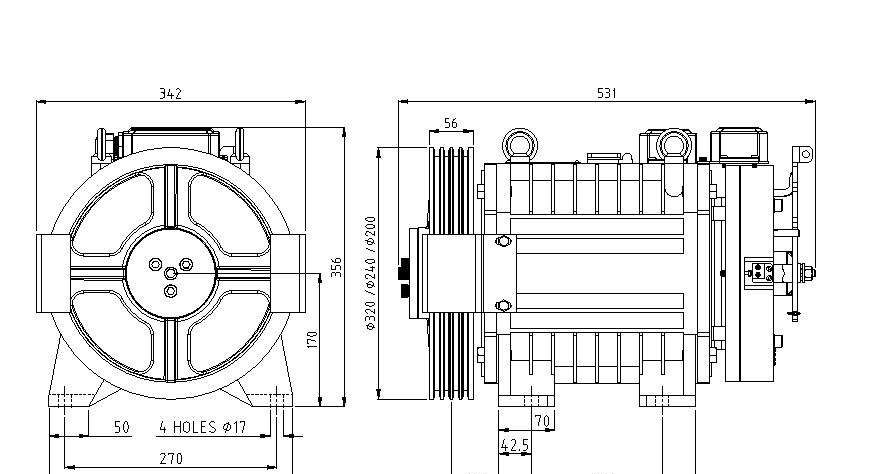

Technical Image

Products Uses

Residential Buildings: Ensures a quiet and smooth ride for residents.
Commercial Complexes: Handles high traffic with efficiency and reliability.
Hospitals: Provides dependable service for critical operations.
High-Rise Buildings: Perfect for taller structures due to superior torque capabilities.
