RTG 24P 10

A gearless elevator machine, the rtg 24p 10 operates smoothly and silently for 10 passengers or a maximum load of 680 kg in multistorey buildings.

Technical Specifications

Specification	RTG 24 P 1010 A-320	RTG 24 P 1010 B-320	RTG 24 P 1010 C-320	RTG 24 P 1010 D-320	RTG 24 P 1010 E-320
Max. Duty Load (Kg.)	680	680	680	680	680
Max. Passenger Capacity	10	10	10	10	10
Max. Speed (m/s)	0.50	0.75	1.00	1.25	1.50
Sheave Dia (mm)	320	320	320	320	320
Ratio of Roping	2:1	2:1	2:1	2:1	2:1
No. of Ropes	6	6	6	6	6
Rope Dia. (mm)	8	8	8	8	8
Current (A)	8.00	9.00	11.00	14.00	16.00
Power (kw)	2.10	3.10	4.20	5.20	6.40
RPM	60	90	120	150	180
Torque (NM)	340	340	340	340	340
Frequency (Hz)	12.00	18.00	24.00	30.00	36.00
IP Protection	IP 41	IP 41	IP 41	IP 41	IP 41
Start / Hr.	180	180	180	180	180
Machine Weight (kg) Appx	210	210	210	210	210

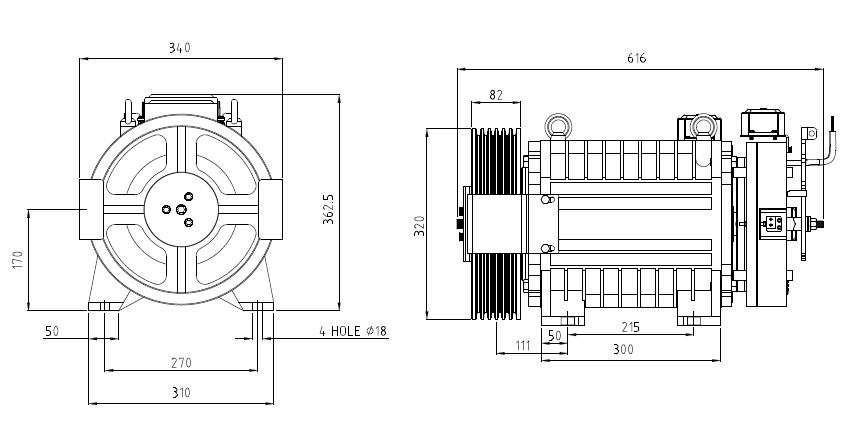

Technical Image

Products Uses

Residential Buildings: Ensures a quiet and smooth ride for residents.
Commercial Complexes: Handles high traffic with efficiency and reliability.
Hospitals: Provides dependable service for critical operations.
High-Rise Buildings: Perfect for taller structures due to superior torque capabilities.
