RTG 24P 15

A gearless elevator machine, the rtg 24p 15 operates smoothly and silently for 15 passengers or a maximum load of 1050 kg in multistorey buildings.

Technical Specifications

Specification	RTG 24 P 1515 A-320	RTG 24 P 1515 B-320	RTG 24 P 1515 C-320	RTG 24 P 1515 D-320	RTG 24 P 1515 E-320
Max. Duty Load (Kg.)	1050	1050	1050	1050	1050
Max. Passenger Capacity	15	15	15	15	15
Max. Speed (m/s)	0.50	0.75	1.00	1.25	1.50
Sheave Dia (mm)	320	320	320	320	320
Ratio of Roping	2:1	2:1	2:1	2:1	2:1
No. of Ropes	8	8	8	8	8
Rope Dia. (mm)	8	8	8	8	8
Current (A)	19.0	19.0	17.0	20.0	21.8
Power (kw)	3.7	5.5	7.5	9.5	11.3
RPM	60	90	119	149	179
Torque (Nm)	630	630	630	630	630
Frequency (Hz)	12.0	18.0	23.8	29.8	35.8
IP Protection	IP 41	IP 41	IP 41	IP 41	IP 41
Start / Hr.	180	180	180	180	180
Machine Weight (kg) Appx	280	280	280	280	280

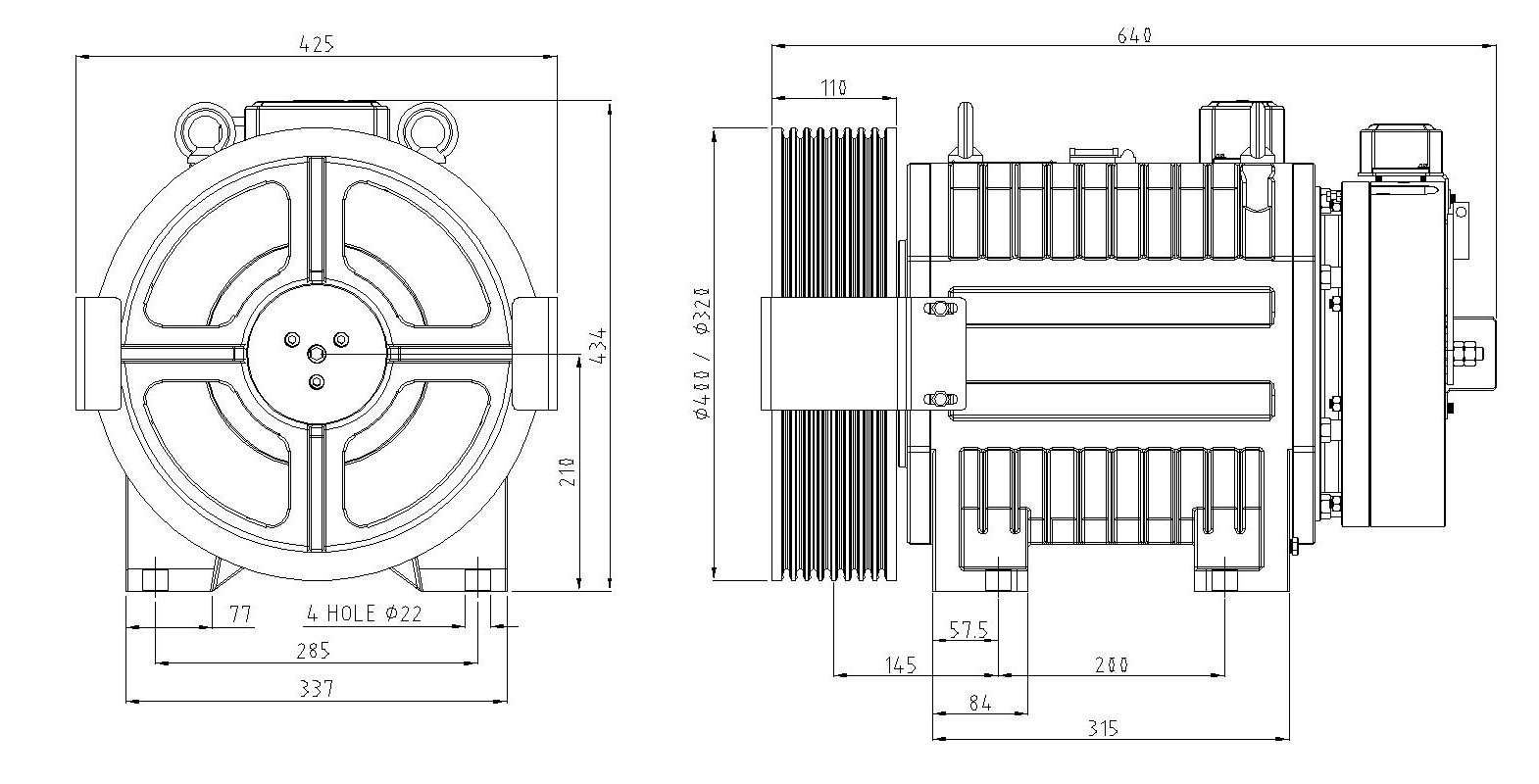

Technical Image

Products Uses

Residential Buildings: Ensures a quiet and smooth ride for residents.
Commercial Complexes: Handles high traffic with efficiency and reliability.
Hospitals: Provides dependable service for critical operations.
High-Rise Buildings: Perfect for taller structures due to superior torque capabilities.
