RTG 24P 16

A gearless elevator machine, the rtg 24p 16 operates smoothly and silently for 16 passengers or a maximum load of 1150 kg in multistorey buildings.

Technical Specifications

Specification	RTG 24 P 1616 A-400	RTG 24 P 1616 B-400	RTG 24 P 1616 C-400	RTG 24 P 1616 D-400	RTG 24 P 1616 E-400	RTG 24 P 1616 A-320	RTG 24 P 1616 B-320	RTG 24 P 1616 C-320	RTG 24 P 1616 D-320	RTG 24 P 1616 E-320
Max. Duty Load (Kg.)	1150	1150	1150	1150	1150	1150	1150	1150	1150	1150
Max. Passenger Capacity	16	16	16	16	16	16	16	16	16	16
Max. Speed (m/s)	0.50	0.75	1.00	1.25	1.50	0.50	0.75	1.00	1.25	1.50
Sheave Dia (mm)	400	400	400	400	400	320	320	320	320	320
Ratio of Roping	2	2	2	2	2	2	2	2	2	2
No. of Ropes	6	6	6	6	6	8	8	8	8	8
Rope Dia. (mm)	10	10	10	10	10	8	8	8	8	8
Current (A)	20.0	20.5	21.0	18.0	22.0	20.0	20.5	18.0	21.0	23.0
Power (kW)	3.7	5.5	7.5	9.5	11.3	4.0	5.9	7.8	9.8	11.8
RPM	56	112	169	149	179	60	90	119	149	179
Torque (NM)	630	630	630	630	630	630	630	630	630	630
Frequency (Hz)	12.0	18.0	23.8	29.8	35.8	12.0	18.0	23.8	29.8	35.8
IP Protection	IP 41	IP 41	IP 41	IP 41	IP 41	IP 41	IP 41	IP 41	IP 41	IP 41
Start / Hr.	180	180	180	180	180	180	180	180	180	180
Machine Weight (kg) Appx	280	280	280	280	280	280	280	280	280	280

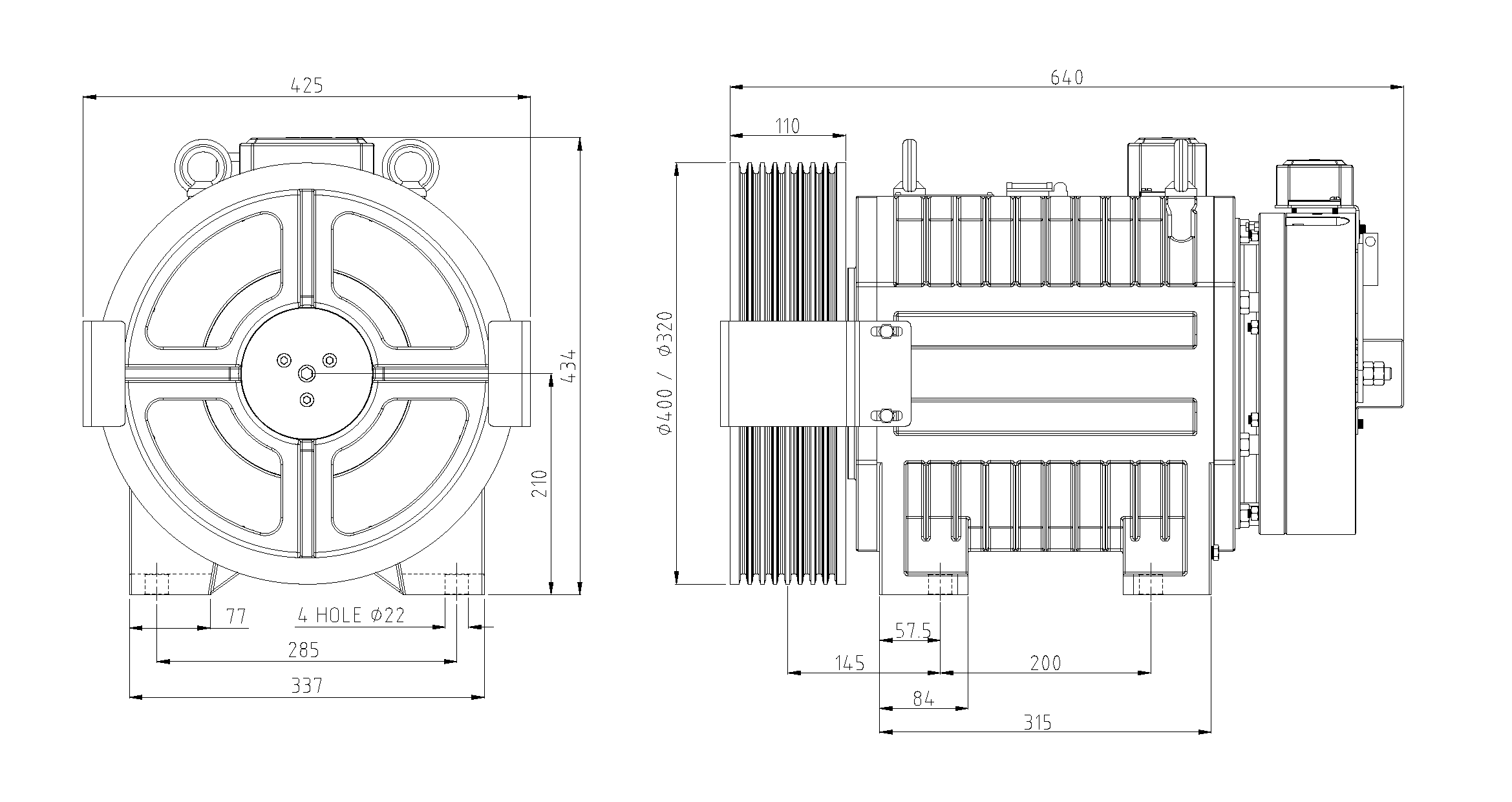

Technical Image

Products Uses

Residential Buildings: Ensures a quiet and smooth ride for residents.
Commercial Complexes: Handles high traffic with efficiency and reliability.
Hospitals: Provides dependable service for critical operations.
High-Rise Buildings: Perfect for taller structures due to superior torque capabilities.
