RTG 32P 1.6

A gearless elevator machine, the rtg 32p 1. 6 operates smoothly and silently for 24 passengers or a maximum load of 1600 kg in multistorey buildings.

Technical Specifications

Specification	RTG 32 P 1.6 T A-400	RTG 32 P 1.6 T B-400	RTG 32 P 1.6 T C-400	RTG 32 P 1.6 T D-400	RTG 32 P 1.6 T E-400	RTG 32 P 1.6 T C-320
Max. Duty Load (Kg.)	1600	1600	1600	1600	1600	1600
Max. Passenger Capacity	24	24	24	24	24	24
Max. Speed (m/s)	0.50	0.75	1.00	1.25	1.50	1.00
Sheave Dia (mm)	400	400	400	400	400	320
Ratio of Roping	2:1	2:1	2:1	2:1	2:1	2:1
No. of Ropes	8	8	8	8	8	10
Rope Dia. (mm)	10	10	10	10	10	8
Current (A)	24	24.50	25	26	27	26
Power (kw)	6	8.40	11	14.10	17	14.10
RPM	50	72	95	120	144	120
Torque (NM)	1110	1110	1110	1110	1110	1110
Frequency (Hz)	13.3	25.3	25.3	32	38.4	32.0
IP Protection	IP 41	IP 41	IP 41	IP 41	IP 41	IP 41
Start / Hr.	240	240	240	240	240	180
Machine Weight (kg) Appx	480	480	480	480	480	480

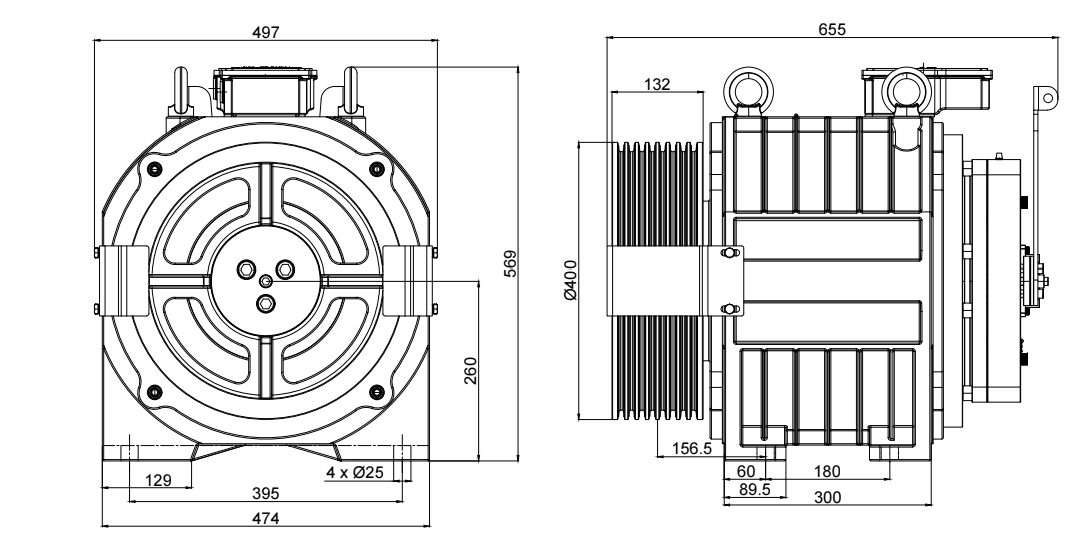

Technical Image

Products Uses

Residential Buildings: Ensures a quiet and smooth ride for residents.
Commercial Complexes: Handles high traffic with efficiency and reliability.
Hospitals: Provides dependable service for critical operations.
High-Rise Buildings: Perfect for taller structures due to superior torque capabilities.
