RTG BD 06

A gearless elevator machine, the rtg bd 06 operates smoothly and silently for up to 6 passengers or a maximum load of 450 kg in multistorey buildings.

Technical Specifications

Specification	RTG BD 06 C-87
Max. Duty Load (Kg.)	450
Max. Passenger Capacity	6
Max. Speed (m/s)	1.00
Sheave Dia (mm)	87
Ratio of Roping	2
No. of Ropes	2X60
Rope Dia. (mm)	–
Current (A)	9
Power (kw)	3.40
RPM	439
Torque (NM)	75
Frequency (Hz)	58.5
IP Protection	IP 41
Start / Hr.	180
Machine Weight (kg) Appx	80

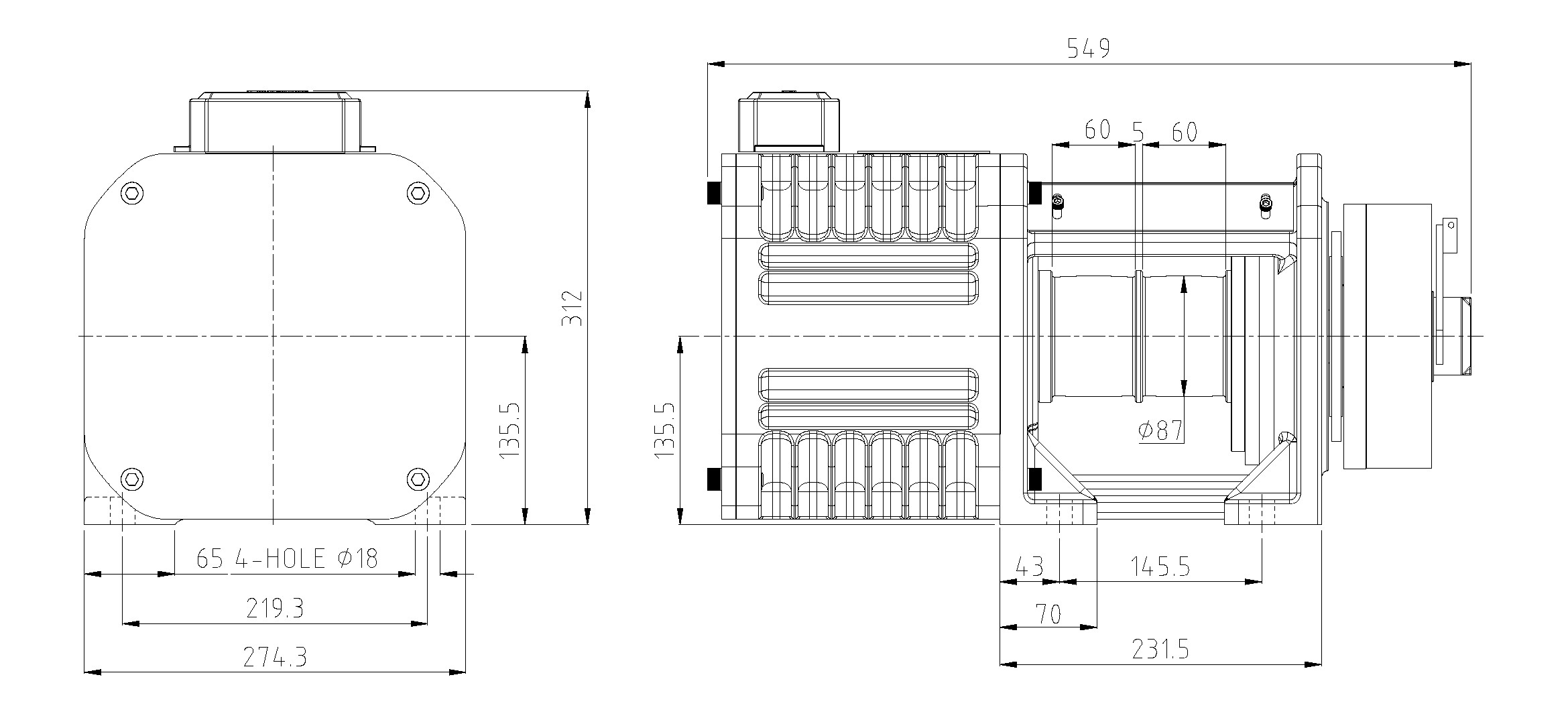

Technical Image

Products Uses

Residential Buildings: Ensures a quiet and smooth ride for residents.
Commercial Complexes: Handles high traffic with efficiency and reliability.
Hospitals: Provides dependable service for critical operations.
High-Rise Buildings: Perfect for taller structures due to superior torque capabilities.
