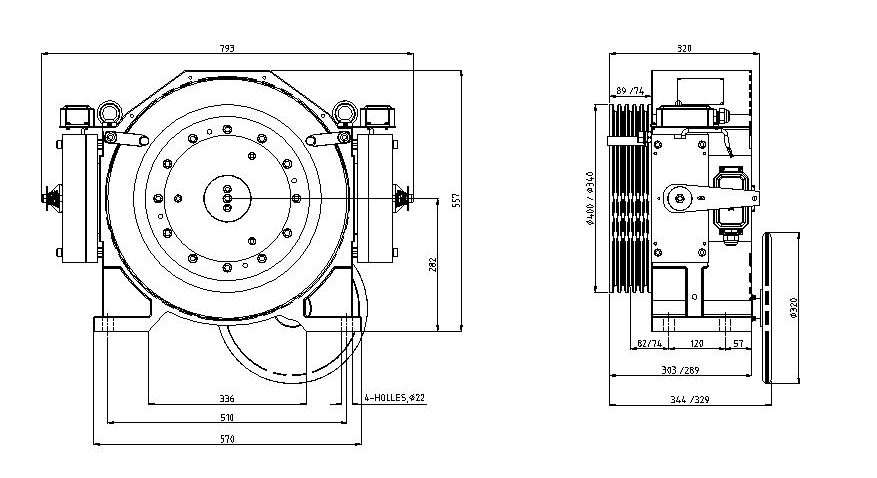

A gearless elevator machine, the rtg 04 (single-phase) operates smoothly and silently for 10 to 16 passengers or a maximum load of 680 to 1088 kg in multistorey buildings.
Specification | TG 1010 A‑340 | TG 1010 C‑340 | TG 1010 E‑340 | TG 1012 A‑340 | TG 1012 C‑340 | TG 1014 A‑400 | TG 1014 C‑400 | TG 1016 A‑400 | TG 1016 C‑400 |
---|---|---|---|---|---|---|---|---|---|
Max. Duty Load (Kg.) | 680 | 680 | 680 | 816 | 816 | 952 | 952 | 1088 | 1088 |
Max. Passenger Capacity | 10 | 10 | 10 | 12 | 12 | 14 | 14 | 16 | 16 |
Max. Speed (m/s) | 0.50 | 1.00 | 1.50 | 0.50 | 1.00 | 0.50 | 1.00 | 0.50 | 1.00 |
Sheave Dia (mm) | 340 | 340 | 340 | 340 | 340 | 400 | 400 | 400 | 400 |
Ratio of Roping | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 |
No. of Ropes | 5 | 5 | 5 | 5 | 5 | 5 | 5 | 5 | 5 |
Rope Dia. (mm) | 8 | 8 | 8 | 8 | 8 | 10 | 10 | 10 | 10 |
Current (A) | 7.0 | 12.3 | 17.6 | 7.3 | 16.5 | 8.0 | 13.5 | 15.7 | 15.7 |
Power (kW) | 2.3 | 4.6 | 7.0 | 3.1 | 6.2 | 3.0 | 5.9 | 6.7 | 6.7 |
RPM | 56 | 112 | 169 | 56 | 112 | 48 | 96 | 96 | 96 |
Torque (Nm) | 395 | 395 | 395 | 525 | 525 | 590 | 590 | 670 | 670 |
Frequency (Hz) | 9.30 | 18.70 | 28.20 | 9.30 | 18.70 | 8.0 | 16.00 | 8.0 | 16.0 |
IP Protection | IP 41 | IP 41 | IP 41 | IP 41 | IP 41 | IP 41 | IP 41 | IP 41 | IP 41 |
Start / Hr. | 180 | 180 | 180 | 180 | 180 | 180 | 180 | 180 | 180 |
Machine Weight (kg) Appx | 350 | 350 | 350 | 350 | 350 | 350 | 350 | 350 | 350 |
